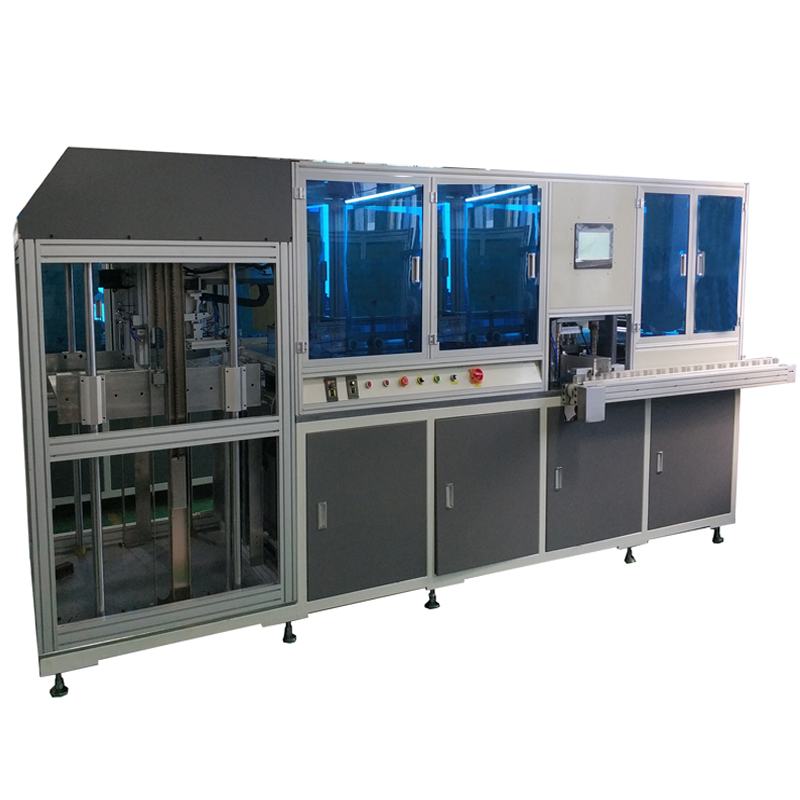

Fully auto playing card punching machine

Fully auto playing card punching machine
Machine Specification:
Feature:
1.High sensitive positioning sensor cooperate with imported high precise ball-screw feed the card, the parameter of each punching point is adjustable, high accuracy.

2.Used high-power servo motor as punching power, low noise, high speed, stable power, punching speed is adjustable.

3.Advanced material transporting structure,ensure the card separating and transporting reliable.

4.Double Mitsubishi servo motor drive the ball-screw alternate feed.

5.The waste material was collected by transfer roller

6. Machine is controlled by PLC, card overlap, real-time monitoring, warning when something wrong happened.



Parameter:
Power supply    AC 380V/50 HZ    Format     11*10
Power     8 KW    Control     PLC+Servo system
Air pressure    6 kg/cm    Operator    1 person
Air supply     About 150L/min    Size     L3000*W1240*H1750mm
Weight     1800Kg     Card standard    Playing card size
Punching accuracy     ±0.10mm     Output    12deck/min
Material     Paper playing card
