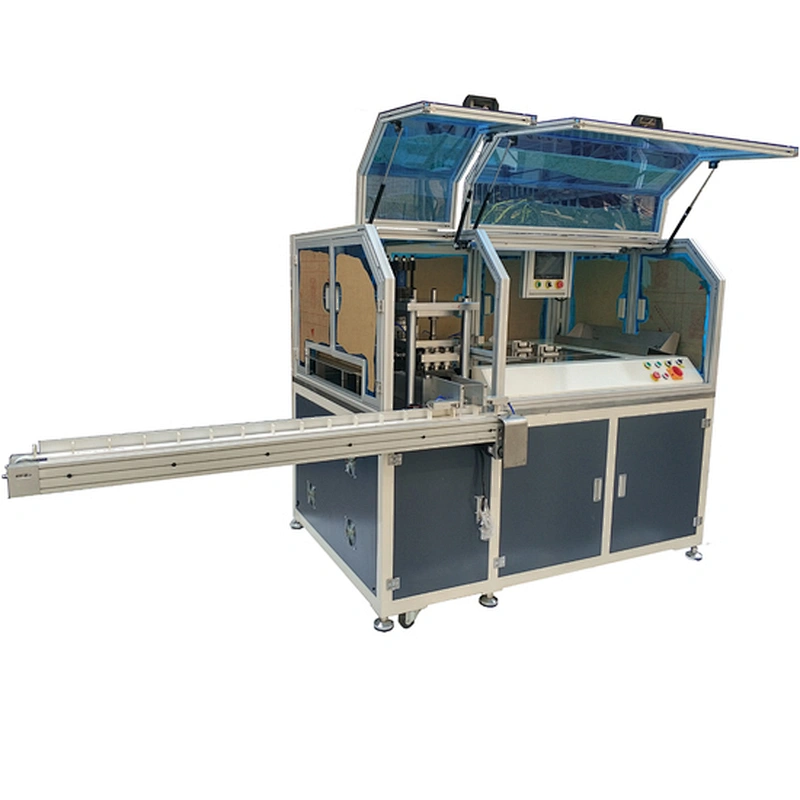

Playing card die cutting machine

11UP Playing card die cutting machine
Function
The RK-PPS11 is designed for high speed punching and stacking of paper playing cards from sheet printed material. Available for any commercial sheet format. Perfect mechanical performance and shear-type male & female die ensures high volume production, accurate die cutting, and high quality card edges.
Feature
1.Used imported ball-screw feed the material, and the positional parameter of each punching point is adjustable. High accuracy.
2. Used Servo motor as punching power,very stable.
3. Used advanced cards collecting system, collect the cards quickly after punching.
4. Controlled by PLC, has emergency stop.
Specification:
Power supply    AC 380V/50 HZ     Suitable products    Playing cards
Power    7KW    Format    11*5
Air pressure    6 kg/ cm    production    14-16 pcs per mintues
Air supply    about80L/min    Control    PLC+ servo system
Weight    1820Kg    Operator    1 person
Accuracy    0.20mm    Size    L1800*W1200*H1700mm
